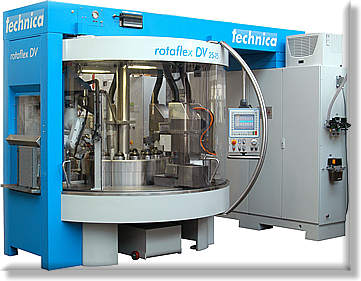

Rotary transfer system rotaflex DV |
... the efficient CNC pallet transfer system, extremely flexible and very accurate
|
 |
|
|
The Rotaflex with a pallet transfer system is ideally suited for the flexible production of small high precision parts in large series |
|
|
Modular machine and machining unit design with 6, 8, 10, 12 or 15 stations |
|
|
A fully equipped (double spindle units) 15 station machine can have up to 28 tools in operation |
|
|
5- / 6 - side machining incl. turning operations |
|
|
Machining accuracy less then 10 µm |
|
|
Maximum work piece size 60x60x60 mm (2.5"x2.5"x2.5") |
|
|
Automatic loading / unloading with integrated 6 axis robot or from bar stock |
 |
Easy access to clamping fixture and cutting tools.
The TWS pallets are clamped through a Hirth coupling on each station. Positioning accuracy of the pallet is within 2 µm. The index table is used for pallet transfer only and has no influence on clamping accuracy.
|
|
Very quick change over to a different work piece with the use of different pallets
Possible inaccuracies of the clamping fixtures can automatically be corrected through offset tables in the CNC control. The so called "dynamic clamping fixture compensation" allows for very accurate machining on all stations.
|
 |
 |
Turning, drilling, milling …. machining without compromise !
Depending on the application each station can be used fixed or as a CNC-B axis, i.e. CNC indexing with 5° increments, rotating axis with CNC indexing head or as rotating axis for turning operations.
|
